Tickets, Tickets & More TICKETS!!

Good evening everyone,

Just wanted to remind everyone about the raffle ticket for the membership prize, renew your HCRA membership before the end of the meeting this Friday. You can renew through PayPal, the link is on the HCRA.org webpage. Here is the link http://www.hcra.org/membership-payment/. If you use snail mail it needs to be at the PO Box before this Friday morning, October 3,2014. You do not need to be present to win.

MFJ-266B Antenna Analyzer
For more information:
http://www.mfjenterprises.com/Product.php?productid=MFJ-266B

test





HCRA’s raffle this year is going to be for a Elecraft KX3!
For a mere $10 donation to the HCRA, you get a chance to win an assembled KX3 by Elecraft valued at around $1000.

This is an very popular and excellent HF portable radio that has an excellent receiver, low power consumption, can run on external power or 8AA batteries internally, it can transmit up to 12W and has plenty of options like an 100W amplifier, 2M module, pan adapter, ATU, Roofing filters, internal battery charger, custom CW paddle and others that can be added later.

k3

HCRA has printed only 250 tickets. Tickets will be sold at meetings and other events throughout 2014 and part of 2015. The drawing will happen when all 250 tickets have been sold or during MTARA’s Hamfest in March of 2015. Plenty of time to obtain your chance. Raffle is just for the Elecraft KX3 Transceiver only. Microphone and paddles not included. Drawing Date Subject To Change.

Last but defiantly not least, The third annual joint HCRA & MTARA Holiday party is scheduled for December 8, 2014. Tickets will be $15.00 and should be available at the October meeting (if the print shop is finished). You may also purchase them by sending a check in the amount of $15.00 made out to HCRA and mailed to Hampden County Radio Association, P.O. Box 562, Agawam, MA 01030. We will have your pre-purchased tickets at the door for you.

tend

Thank you all for making our club the best. 73

W1MOR
Eric LaCombe
Southwick MA 01077
413-221-0890
V.P. H.C.R.A.

Win an Elecraft KX3! – HCRA Raffle

HCRA’s raffle this year is going to be for a Elecraft KX3!

KX3_1920

(Raffle for radio only! Antenna, angle adapter, microphone and keyer not included)

For a mere $10 donation to the HCRA, you get a chance to win an assembled KX3 by Elecraft valued at around $1000.

This is an very popular and excellent HF portable radio that has an excellent receiver, low power consumption, can run on external power or 8AA batteries internally, it can transmit up to 12W and has plenty of options like an 100W amplifier, 2M module, pan adapter, ATU, Roofing filters, internal battery charger, custom CW paddle and others that can be added later.

HCRA has printed only 250 tickets and we will start selling them during field day 2014. Tickets will also be sold at meetings and other events throughout 2014 and part of 2015. The drawing will happen when all 250 tickets have been sold or during MTARA’s Hamfest in March of 2015. Plenty of time to obtain your chance.

Raffle is just for the Elecraft KX3 Transceiver only.
Drawing Date Subject To Change

Adding Wifi to a KX3

Wifi inside a KX3

20140512_131034-001While browsing info on the ‘Piglet’ on Nick Garner’s Pignology web site the thought struck me, I wonder if I could install a version of the Piglet inside my KX3. I built my KX3 from a kit and never installed the battery holders or the internal charger. I’ve always operated the rig from an external supply;  either Lipo batteries or from a 12 VDC supply in the shack. Looking at the size of the Piglet I thought there might be room enough to fit it inside the KX3.

A few emails back and forth with Nick/N3WG, (the guy behind the pig) confirmed the possibility. Nick suggested a through-hole version of the board, minus the DB9 and Power Poles connectors, for experimentation. A few days later the parts showed up and it was off to the races – another first for Muppet Labs. Actually It turned out to be an easy project and enables logging with  Pignology’s Hamlog app without having to deal with wires.

The first ‘trial by fire’ was on top of Cascade Mountain in the Adirondacks. I brought along pencil and paper as backup but Nick’s Hamlog software and the built in Piglet worked perfectly. I logged 22 contacts without a hitch. I was using the Android version of the app which unfortunately does not export a SOTA compatible .csv file, hopefully Nick may add that in the future. I experienced intermittent cell service while on Cascade which let Hamlog look up callers in QRZ while I was logging. Very cool to be able to answer someone with a ‘Thanks Barry, you’re 599 72”, making a personable, but quick QSO. The photo shows the ‘shack’ on top of Cascade (3880’) but not the phone I was using for logging because???  You guessed it I was using the same phone to take the photo!

Piglet closeup




What you get is a really cool, KX3/W – not everyone has one of those, right?

This mod isn’t for everyone. You should be comfortable with soldering in tight places and not afraid to damage a $1000 radio. Battery drain is increased as the Piglet draws 70 ma, and you have to disconnect it if you want to use the ACC1 jack to update firmware or use a different logging program. For my use this is perfectly acceptable. The ease of logging and (hopefully) log upload to the SOTA database make it perfect.  As always YMMV, follow along for a detailed, step by step, article.

Caveats

  1. You will have to remove the battery holders in your KX3. This was not an issue for me as I never installed them in the first place. On summits I power the rig with an external Lipo battery, at home with a 12v supply.  If you’re OK with this then read on!
  2. You also need access to P3, so the KXBC3 can’t be installed. Since the battery holder isn’t installed you probably don’t have the charger anyway!
  3. Mounted inside the KX3 without its antenna exposed the Piglet’s wifi range is short, somewhere around 8 to 15’. I don’t see this as an issue as most people will be much closer than that when logging but figured I should point it out.
  4. The method I used to power it is unswitched, whenever there is power at the 9-15 VDC plug on the KX3 the Piglet is powered on. There is a spot on the circuit board with ‘switched’ 12 volts that could be used. This solves the always on when battery is connected problem but still means the Piglet is always on when the rig is turned on, and this presents the last caveat.
  5. Wired as shown the ACC1 jack is no longer usable with the KXUSB (or KXSER) cable when the Piglet is powered on. You must power off the Piglet in order to regain the use of ACC1 for firmware upgrades or using other logging programs.

If you can live with the above then here’s how you do it, including pictures!

This mod isn’t for everyone. You need to be comfortable with soldering in tight places. If you damage your KX3 I’m sure it won’t be fixed under warranty and you lose your internal battery holder.

Installing a Piglet inside an Elecraft KX3

  1. Obtain the Piglet board, minus the DB9 and Power Poles from Pignology
  2. Power up your KX3 and set the RS232 baud rate to 4800
    1. It’s easier to do this now than when the rig is apart for testing.
  3. Open up the KX3 for surgery
    1. I found it easier to work on the rig if I disconnected the flex cable and worked on the front half of the rig (the control panel side) without having the back half in my way.
  4. Remove the battery compartment shield board and battery holders if still installed. Don’t lose the screws holding the battery retainer and shield as It will be replaced.
  5. Prepare a small three conductor, 6” long, color coded cable.
    1. On one end strip 1/8” of insulation and tin the wires.
    2. Solder the ends to the ACC1 jack as shown
    3. Make note of the color code so you can connect them to the correct lands on the Piglet circuit board.
    4. Leave the other end of the cable free for the moment.ACC1 wiring
  6. Replace the battery compartment shield board (you didn’t lose the screws, correct?
  7. Prepare the Piglet (Figure x)
    1. Solder a jumper between pins 4 and 8 of the DB9 connector traces.
    2. Solder a (+) and (-) 2” jumper with jacks to the appropriate locations (where the Power Poles should connect) on the board. See the parts list for the jumpers/jacks I used.Piglet data connections
    3. Roughly locate the Piglet where it belongs
    4. Cut the wires from ACC1 to a comfortable length and solder them to connections 2, 3 and 5 of the DB9 connector traces. You did remember your color code, right?
    5. Use double stick foam tape to mount the Piglet as shown.
    6. Clean the shield and bottom of the Piglet board with alcohol, it really helps the tape stick better.
    7. Connect the power jumpers you installed to pins 1 and 10 to  the KX3’s plug P3KK1W on Cascade Mtn.
    8. Positive (+) goes to pin #1
    9. Negative (-) goes to pin #10
    10. P3 is the plug for the KXBC3
  8. Reconnect the KX3’s flex cable
  9. Plug a known power source into the KX3’s 9-15V power jack. You should see LED’s start to flash on the Piglet
  10. Verify you can see the Piglet in your mobile device’s Wifi list.
  11. Turn on the KX3
    1. Start your Hamlog app and follow Nick’s instructions for setup.
    2. If everything is correct you should now be able to control your KX3 with your mobile device
  12. Congratulations – you now have a KX3/W (Wifi)!

Parts List:

  1. Piglet board w/o DB9 and Power Pole connectors:  Pignology
  2. Small, flexible wire with push on connectors. I used product number 826 from Adafruit for both the ACC1 wiring and the power connections:   http://www.adafruit.com/products/826
  3.  Double stick foam tape. I used servo tape available from any R/C hobby store. Something similar to this should work fine:  http://www.sigmfg.com/IndexText/SIGSH119.html

Other information

1. Elecraft KX3 Schematic KX3 Control Panel Connectors:  http://www.elecraft.com/manual/KX3SchematicDiagramDec2012.pdf

2. KXSER Schematic the cable schematic is on the last page: http://www.elecraft.com/manual/KXPA100%20Owner’s%20Manual.pdf

Don’t forget to disconnect the battery when you’re not using the KX3 or the Piglet will deplete it. The Piglet shows approximately 70ma of current when running. Considering the KX3 can draw up to 3A on transmit it isn’t going to reduce your battery life significantly.

Remember! If you need to use the ACC1 jack with the KXUSB (or KXSER) cable you will have to turn off the Piglet. What I do is open up the rig and remove the (+) connection to the Piglet. I’m sure some craftier folks could find a way to add a switch but I’m OK with this simple approach. The KX3 is usually used portable and the frequency of firmware updates doesn’t make it a burden to stay with the simple approach.

There doesn’t appear to be any negative impact on the KX3’s performance, either RX or TX, since the modification. I don’t have access to sophisticated test equipment but A/B comparisons to an Icom IC756-2 with weak signals, before and after the mod, didn’t show any RX degradation from the mod.

Ideas, questions, suggestions, corrections?  Feel  free to drop me an email!

’73 and enjoy your KX3/W

Jim/KK1W
mailto:kk1w@arrl.net



And the winner is… ???

It brings us great pleasure to announce the winner of the KX3 raffle today. The drawing was held a little after noon at the close of the MTARA Hamfest.

KX3 Raffle

Our winner is:

Chris Snyder/KB1RMA

Unfortunately Chris was not present to collect his prize. We will be shipping it out to him the first part of the week.

Thanks to everyone that supported our second KX3 raffle and made it even better than the first. From the folks at HCRA that kept track of the sales, manned the tables selling tickets, promoted the raffle and stuck with it to the very end – thank you to Ed/KB1NWH, Rich/N1KXR, Dave/AA1YW, Jeff/NT1K, Frandy/N1FJ and others I’ve probably missed. Most importantly thanks to all our members and guests who participated and supported our efforts. HCRA is better because of your generosity.

So what’s next? Who knows, we’re open to suggestions. What would you like to see as the prize for our next raffle?

’73…
Jim/KK1W

Visit the HCRA Table at the MTARA Hamfest this Saturday.

MTARA Hamfest this Saturday, March 2nd – Visit us at the HCRA club table!

The hamfest/fleamarket season is just getting underway. What better way to break out of the winter blues than to spend a few hours with your local friends, wander aisles of tables full of ham radio bargains, eat food you probably shouldn’t, and overall have a good time than to go to one? I for one can’t think of anything better, that’s for sure. Lucky for us there’s one right around the corner!

The generous folks at MTARA have again made tables available for local clubs and HCRA will be there in full force. Please stop and say hello while you’re browsing the aisles for that ‘special bargain’. Want to join or renew your membership, you can do that. How about chatting with club members, yep, you can do that too. Buy a raffle ticket or three for a KX3 – most certainly. Pick up a bargain item donated from our members – yes sir. We’ll even have a few projects from the previous nights Show & Tell on display, maybe they will inspire your creative juices and give you ideas of what ‘stuff’ you can pick up to build something yourself?

KX3 Raffle. The winning ticket for an Elecraft KX3 will be drawn around noontime at the hamfest. Tickets are selling fast (there’s only 250 being sold) so stop by the table early to get yours. Think about how you will feel taking home a $1000 radio for the price of a winning ticket!

Do you have something you would like to donate to HCRA to sell at our table? If you do please either bring them to Friday’s HCRA meeting or contact Jim/KK1W for pickup. We’re not accepting items for sale, just donations. If you have items to sell yourself contact MTARA (see link below) and see if they have any table space left. And please, no computer monitors, printers or anything else you would have to pay for disposal.

The MTARA Hamfest will be held at the Turnverein Club in Feeding Hills, MA. Doors open to the public at 8:30 AM. For more details and directions please click here.

See you at the hamfest!

Jim/KK1W





From the Shack – March 2013

Next Meeting March 1st  – Our annual Show & Tell night!

It is March Madness again at HCRA with our annual Show & Tell event. I’ve heard a lot of members are putting the finishing touches on their projects and expect we will see a grand assortment of ham radio, or not so ham radio, contraptions that will strike fear in your hearts when they reach for the on/off switch!

All kidding aside Show & Tell brings out the best of our member’s creative juices. The spectrum of projects is wide and has touched most areas of amateur radio and beyond over the years. Matt/W1MSW and Frandy/N1FJ have conjured up neat prizes for tonight along with refreshments and maybe a few other things too? Only way to find out is to be there!

There’s still time for YOU to wrap up your project and get it to this Friday’s meeting. But finish reading this month’s Zero Beat first, OK?

KX3 Raffle drawing – Time is running short!

The drawing will be held March 2nd at the MTARA Hamfest. Tickets are almost gone, if you haven’t purchased yours yet there’s only two opportunities left; tonight’s HCRA meeting or at the hamfest the following day. Be sure to visit the HCRA table, say hello, join or renew your membership AND get a ticket – how cool is that? The drawing will be held at the hamfest around noon. Who knows, you could go home with a brand spanking new KX3 worth $1000 and get on the air that afternoon!

Foxhunting Coming Soon? – Are you ready for some warm weather fun?

February’s Foxhunting/Build-a-Beam meeting was very successful. Fifteen folks went home with a three element beam and we have a dozen people on a potential fox hunting list. There was a lot of interest in the presentation, including building an Arduino controlled Doppler system. (I wonder if one will show up at Show & Tell) The question remains, “where do we go from here?”

First: We will have the sign-up sheet at tonight’s meeting. If you either missed February’s meeting or were too busy to sign up here’s another opportunity to put your name on the list.

Second: I’m hoping a few people will ‘raise their hands’ to spearhead the first few foxhunts. A perfect combination would be an experienced hunter and a novice. They could get their heads together, plan an opening hunt or hunts and really get the ball rolling. Once started, and with the enthusiasm shown at the last meeting I’ll bet it will roll merrily along gaining momentum every month. Please, see if YOU can find an hour or two in a month to help get this started.

Third: HCRA resources such as our Facebook page, Zero Beat, the website and the HCRA mailing list are open and available for use in promoting and coordinating foxhunting. There may be other ways we can help as well, but first we need some folks to step forward, put a little ‘sweat equity’ into the project and create fun for our entire community.

Let’s talk after tonight’s meeting and see what we can come up with, OK?

HCRA Zero Beat Archives – W200NY – what was that?

Don’t know, check out the March 1988 issue of Zero Beat in the archives. You never know what you’ll come across in our long and varied history. We’re still looking to ‘fill the gaps’ in our Zero Beat collection so I’ll repeat last month’s request.

Special request. Please take a look at the archive list. If you have, or know of someone who has other issues please get in contact Jeff so they can be added to the archive. We can accept them as a .pdf or can scan and return to you. We know there are folks out there with additional issues, here’s a chance to get them preserved and easily accessible for everyone’s enjoyment.

Spots from the cluster:

PaypalJeff is working toward a PayPal interface on our website. Our expectations are soon members wishing to join, renew or donate from the convenience of their couch will be able to click ‘send’. The question rose at the February meeting (thanks Norm), “will we still be able to send a check” and the answer is “yes”. Nothing is changing except we are adding an additional method of payment; we’re not taking anything away with the change.

Meeting Refreshments – It is apparent our members enjoy having coffee and sweets at the meetings. The rub is nobody seems to feel it should be ‘their job’ to procure them! What’s up with that? Counting family members our club membership is over one hundred people! As I’ve mentioned in the past do you really think all club duties should fall on the nine board members? I don’t believe it should, that’s why I’m tossing out this request once again.

We are looking for one or two folks to pick up coffee & donuts for the meeting. Do you feel you, maybe with a friend, could spend fifteen to thirty minutes and benefits all the folks attending the meeting? If so please see me at the end of the meeting. I’ll fill you in on how easy it is to put smiles on the faces of forty or so people.

New England QSO Party – May 4th and 5th, 2013

Mark your calendars now for a fun weekend of ham radio, New England style. During this weekend YOU become the DX with stations from all over the US looking to work you for fun, glory and the chance to win a lobster dinner.

HCRA sponsors a beautiful plaque for this contest. How do you win it? Easy, it’s given to the highest single operator score submitted from HampdenCounty. Sometimes it doesn’t take many QSO’s to win, it all depends on who is QRV in HampdenCounty for the contest. The contest starts at 4:00 PM Saturday afternoon and after taking a break between 1AM and 9AM Sunday morning goes on to end at 8PM Sunday evening. Usually both our club calls (W1NY and WB1Z) are active in the contest. If you would like to operate under either one get your request in now!

‘73 and don’t forget to pick up your winning KX3 ticket at the meeting,

Jim/KK1W



From the Shack – February 2013

Next Meeting February 1st
Foxhunting presentation and ‘Build a Beam’ Workshop

Meeting number two of the year is another ‘double header’ thanks to the efforts of Jeff/NT1K and Rich/N1KXR. Read on and see what we have in store for you this February. We will be running two concurrent activities Friday night. At the front of the auditorium will be a presentation of foxhunting and at the rear a “Build-a-Beam” workshop.


Local foxhunters Lou/N1LZD and Rob/KA1RBH – with state of the art for 1993 hunters!

“Everyone foxhunting in the area in the early 1990’s can remember the dreading Rob & Lou’s
dedicated foxhunt vehicle. Sporting GPS, Flux gate compass, Doppler DF gear, on board computer and custom programming it was a formidable opponent (but not infallible)
!

Foxhunting, what’s it all about? Whether you’ve thought about foxhunting, been on a foxhunt in the past or are interested in participating in future hunts this meeting is for you. We’re gathering up historical data, will present a brief ‘how-to’ that should entice you to try foxhunting this spring and we’ll talk about what foxhunting might look like in the future. If you have anything you’d like us to share from the past or suggestions for future hunts we’re all ears for that too. This should be a fun presentation that will remind us the diversity our hobby provides and take our mind off the freezing cold weather for a few hours or so. Remember, spring is just around the corner.

3EL Beam

Build your own 2m Yagi antenna! In the back of the room Jeff and Rich will be holding a ‘Build a Beam’ workshop. Their students will assemble a pre-cut, three element “tape measure” yagi for 2 meters, solder on the coax and give it a try. The little Yagi is good for portable operations, SOTA and of course – foxhunting. More details about the workshop can be found here. There’s still room for a few more students. If you are interested contact Jeff right away so you don’t miss out. After the beams are built everyone can watch as the happy builders give them a test run.

Show & Tell next month
How’s your project coming along?

HCRA’s March meeting wouldn’t be the same without Show & Tell. This is when YOU, the HCRA builder, get an opportunity to show off what you’ve been working on over the last twelve months. It’s fun for the builders and the audience alike. You never know what type of project will show up. Over the years we’ve seen everything from stop light controllers to Van DeGraaff generators, novice transmitters to remote antenna switches, QRP rigs to kilowatt amps. Wonder what you will see this year? The only way I know of is to show up March 1st for the fun!

Jon KA1TDQ's homebrew 30 meter transmitter. WB1DBY photograph

This year Matt/W1MSW and Frandy/N1FJ will be running the show. I’ll bet we see some different twists, don’t you? Curious, look for Matt’s Show & Tell article in February’s Zero Beat (and don’t forget to keep working on your project!)


HCRA Zero Beat Archives

15 additional years added!


Click the image and go back in time to February 1978!

Thanks to John/AC1T and Jeff/NT1K we now have an additional fifteen years of Zero Beats added to the archives. John spent many hours scanning his collection and forwarding them to Jeff for inclusion in the archives. Issues have been added from 1976 to 1990. It’s interesting to see a snapshot of what both HCRA and ham radio was like 25 to 30 years ago. Some things have changed a lot, others… You’ll have to see for yourself – just click here and take a ride in the HCRA TARDIS!
Special request. Please take a look at the archive list. If you have, or know of someone who has other issues please get in contact Jeff so they can be added to the archive. We can accept them as a .pdf or can scan and return to you. We know there are folks out there with additional issues, here’s a chance to get them preserved and easily accessible for everyone’s enjoyment.

Amateur Radio License Classes
Four new hams & two upgrades – fantastic!

Over the last three weeks the HCRA Instructor Team held classes for all three levels of amateur licenses at the HMC Auditorium. We had seven Technician, three General and three Extra class students. The final class and test session was held on January 26th

Let’s extend a hearty ‘welcome aboard’ to the following newly minted Amateur Radio Operators:

Technician Class
Cindy Forbes
Tom Isham
Doug McLean

General Class
Eric LaCombe

Upgrade to General
Ralph Gedney/KB1LEW/AG

Upgrade to Extra
Diane Shippee/KB1KST/AE

Thanks to all the instructors that participated; Frandy/N1FJ, Ed/KB1NWH, Jim/KK1W, Steve/N1SR, Rich/N1KXR and of course John/Kx1x for taking the helm and getting it done. Thanks also to our hosts at HMC for allowing us the use of their fine facility. Of course the real fun is seeing the happy faces of the newly licensed or upgraded hams!

Spots from the cluster:

Silent Auction Results: January’s silent auction was a success. Thanks to the many donations folks went home with bargains and HCRA added approximately $400 to our treasury. We’re still thinking of how we can bring back the ‘old style’ auction and welcome any suggestions.

KX3 Raffle drawing is March 2nd. There are still two HCRA meetings and one MTARA meeting offering opportunities to purchase a ticket. Your absolute last chance will be at the MTARA Hamfest on March 2nd. Visit the HCRA table, say hello, join or renew your membership AND get a ticket – how cool is that? The drawing will be held at the hamfest at noon. Who knows, you could go home with a brand spanking new KX3 worth $1000 and be on the air that afternoon!

Notes from the ARRL Cabinet Meeting of January 5th Dave/AA1YW and I attend the NE Division meeting, here’s a few highlights:
There’ could be a new LF band coming soon on 135.7 to 137.8 kHz according to the FCC. Also the ARRL has filed a petition for a low frequency band on 472 to 479 kHz. Follow the links for more details.
The 1900 to 2000 kHz segment of 160 meters could be made ‘Primary’ for ham operators. We’ve been secondary on this segment because it was formally used by the LORAN radio location system. The last LORAN broadcast from the system was from Caribou, ME, September 21st, 2010.
The ARRL National Convention will be held in Hartford on July 20, 21 and 22 in 2014. Hartford was picked for the 2014 location to offer an opportunity to the participants in WRTC2014 a chance to unwind and meet other US hams.

‘73 and see you at the meeting,
Jim/KK1W

Silent Auction -TONIGHT! – are you ready for some fun?

Yep, whether buying or selling tonight’s HCRA meeting, Coax Presentation and Silent Auction promises to be great fun. If you have something to sell, bring it down. Buying, all you need is $$$ :). Everyone is welcome, members and non-members alike so bring a friend that’s interested in radio along too.

Besides the Silent Auction Ed/KB1NWH will tell us all we need to know about that round black wire going to our antennas and other accessories (coax). Learn which is best to use in specific applications and also where you can save money. Don’t miss it.

And of course there’s the KX3 Raffle, coffee & donuts and a chance to get together with your friends in the new year!

Don’t miss it, see you there!

Jim/KK1W

OPERATING TIP

OPERATING TIP

CQ WW RTTY Director, Ed WØYK, shares the log submission issues experienced by all contest sponsors. “It is apparent that many people do not read the robot email reply they receive. At the bottom of that email, the robot lists the format errors in the log. If you don’t understand what the robot is telling you, then simply compare that specific QSO line with the format specified on the Logs web page. The problem should be obvious.

“Major logging programs like Win-Test, N1MM Logger and WriteLog all create compliant Cabrillo files … IF you enter your data correctly. For example, if you enter your sent exchange as ‘CA 03’ in N1MM Logger (which is backwards from the required order for CQ WW RTTY), it will come out in that (incorrect) order in the Cabrillo file.

“You can easily edit your Cabrillo file with a text editor. Since is it common to add, change or move the same parameter field in every QSO line, a column editor is invaluable. I recommend the freeware Crimson Editor.”

So read that robot message! If it tells you there is something wrong with your log – do something about it and resubmit it. Double- and triple-check your operating category and all of the information for your station. Once you have a happy robot and you are a happy log submitter – save the confirming message in an easy-to-find location. My email software has a folder named “Contest Log Submissions” for all of my log submission confirmation messages. It’s easy and helps avoid the dreaded “forgot to send in my log” disease.

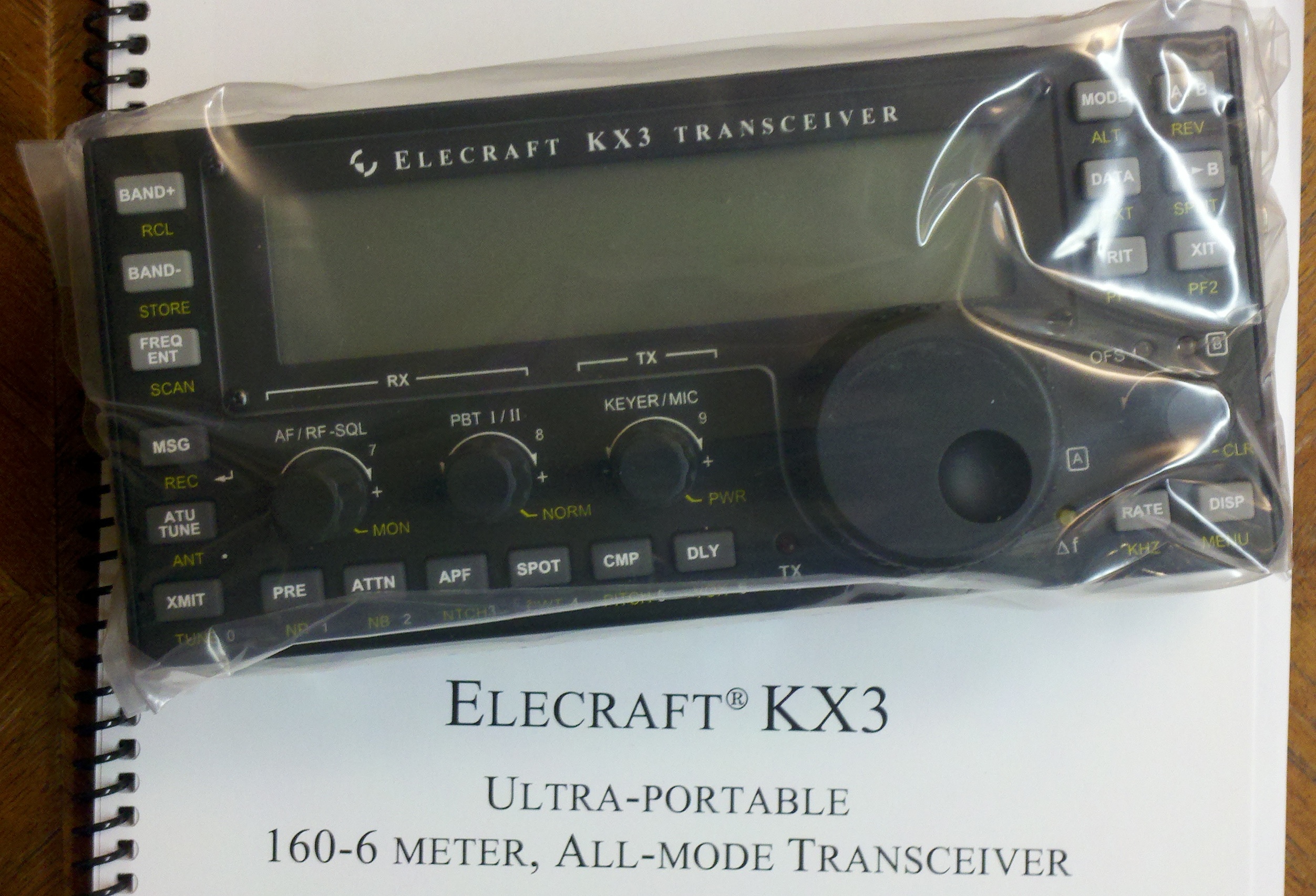

This KX3 could be YOURS!



We’re talking about the EXACT Elecraft KX3 in the photograph, serial # 2261. It arrived safely and is in our hands. So how do you get it? Easy, purchase a KX3 raffle ticket at the next HCRA meeting, that’s how!

For a mere $10 donation to HCRA you get a chance to win this exciting new HF transceiver valued at $1000. Just recently it topped Sherwood’s list for best receiver performance but now has slipped to second place behind a $20,000 rig. Twelve watts, all HF bands and runs on 8 AA batteries – how cool is that? Only 250 tickets will be sold and the drawing will be held March 1st, 2013 (or earlier if we sell all the tickets). Tickets are selling quickly – don’t miss out on a golden opportunity to own a world class, ultra portable, HF transceiver..

A few of our members own a KX3 and they are indeed a nice toy. Rumor has it there will be one set up and operating at our November 2nd meeting. Of course #2261 will be on display (if you can get it out of Ed’s hands) at the raffle table. Can’t make it to the meeting, then drop me an email and I’ll be sure you get your ticket(s).

Thanks as always for your support of HCRA, our raffles and our events!

Jim/KK1W
